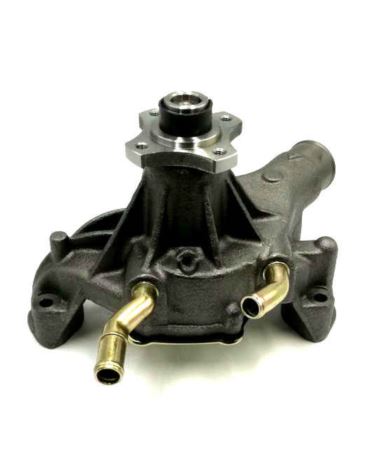

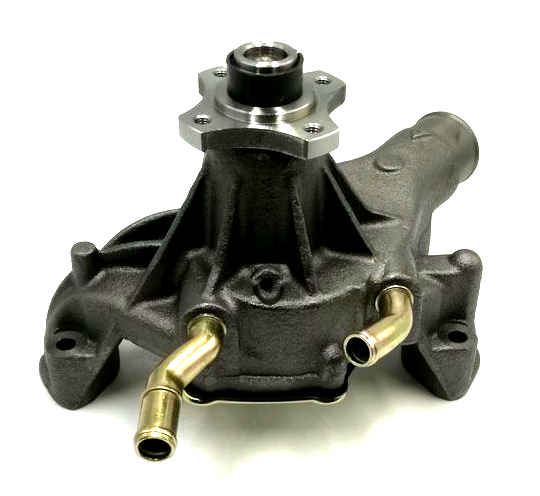

Pompa wody GM 4.3L V6 Jungheinrich 50018914

Pompa wody GM 4.3L V6 Jungheinrich 50018914

Kod produktu:7346
Dostępność: w magazynie
Wysyłka w:24h
Cena netto: 392,00 zł
Cena brutto: 482,16 zł
Ilość
Opis:

TFG 40-50 CK CS

Pompa wody do wózka Jungheinrich / Jungheinrich water pump used on:

Jungheinrich 50018914

Sort waterpump Flange
Type waterpump A6
Total height H1 (mm) 155
Maximum length L1 (mm) 309
Shaft diameter D1 (mm) 19
Neck diameter D2 (mm) 46
Flange/gear or pully diameter D3 (mm) 84.6
Total quantity of mounting holes (holes + thread) 4
Number of threads 4
Biggest thread TA1 M8
Metric pitch Pm1 (mm) 1.25
Smallest centre distance of nearest mounting holes C1 (mm) 48
Biggest centre distance of nearest mounting holes C2 (mm) 48
Thread of mounting cooling fan present YES
Type of mounting cooling fan, if present TA4 M30
Metric pitch Pm4 (mm) 1.5
Right or left-hand thread RH
Gasket included YES

TFG 40-50 CK/CS 8.99 - 12.02
DFG 63-75 HC TFG 75 4.93 - 12.98
DFG/TFG 40-50 CK/CS 12.02 - 3.04
CD/CL 40-50 C/H 12.02 - 3.04
TFG 40 CS 4.04 - 6.04
TFG 45 CK 4.04 - 6.04
TFG 45 CS 4.04 - 6.04
TFG 50 CK 4.04 - 6.04
TFG 50 CS 4.04 - 6.04
TFG 40 CK 4.04 - 6.04
TFG 540 7.04 -
TFG 540s 7.04 - 10.08
TFG 545 7.04 -
TFG 545s 7.04 - 10.08
TFG 550 7.04 -
TFG 550s 7.04 - 10.08
