Jungheinrich TFG 16/20 AK/AS (1997-2004), TFG 316/320 (od 2004 roku), z silnikiem Mazdy 2.0 YALE GLP16AF B810

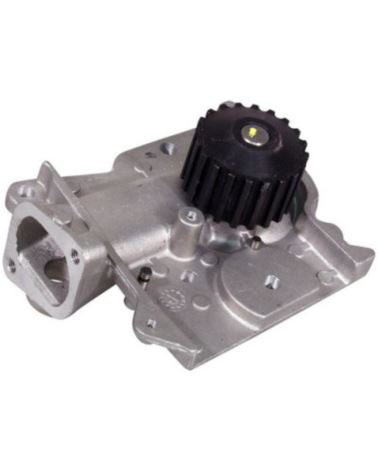

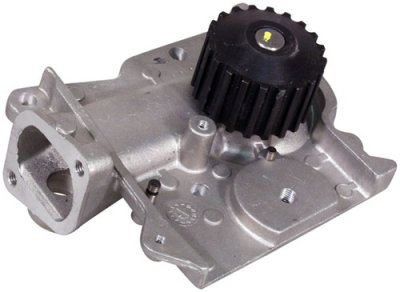

Pompa Wody Jungheinrich 50021548 MAZDA FE
Kod produktu:5043
Dostępność:
wysyłka 1 dzień
Wysyłka w:24h/48h
Cena netto:
175,70 zł
Cena brutto:
216,11 zł
Opis:
Jungheinrich TFG 16/20 AK/AS (1997-2004), TFG 316/320 (od 2004 roku), z silnikiem Mazdy 2.0 YALE GLP16AF B810
Pompa wody do wózka Jungheinrich /Jungheinrich water pump / Vodní cerpadlo pro Jungheinrich
Jungheinrich 50021548
| Sort waterpump | Toothed pully |
|---|---|
| Total height H1 (mm) | 86 |
| Maximum length L1 (mm) | 190 |
| Shaft diameter D1 (mm) | 16 |
| Outer diameter gear, type C and D D7 (mm) | 59.5 |
| Number of teeth on gear, type C and D | 20 |
| Thread of mounting cooling fan present | NO |
| Gasket included | YES |
| TFG 16-20 AK/AS | 5.97 - 11.98 |
| TFG 16-20 AK/AS | 12.98 - 12.01 |
| DFG/TFG 16-20 AK/AS | 1.02 - 12.03 |
| CD/CL 16-20 C/H | 1.02 - 12.03 |
| TFG 16 AK | 12.03 - 6.04 |
| TFG 20 AK | 12.03 - 6.04 |
| TFG 16 AS | 12.03 - 6.04 |
| TFG 20 AS | 12.03 - 6.04 |
| TFG 316 | 7.04 - 4.06 |
| TFG 316s | 7.04 - 8.09 |
| TFG 320 | 7.04 - 4.06 |
| TFG 320s | 7.04 - 8.09 |
| CL 16 C | 12.03 - 4.06 |
| CL 20 C | 12.03 - 4.06 |
Yale
GLP 16/20 B810
Hyster
H2.00 XM, H2.50 XM, H2.75 XM, H3.00 XM, H3.20 XM, D177
