150x95-25 Koło nośne Jungheinrich 51219781

150x95-25 Koło nośne Jungheinrich 51219781

Kod produktu:130292
Dostępność: w magazynie
Wysyłka w:24h
Cena netto: 545,28 zł
Cena brutto: 670,69 zł
Opis:

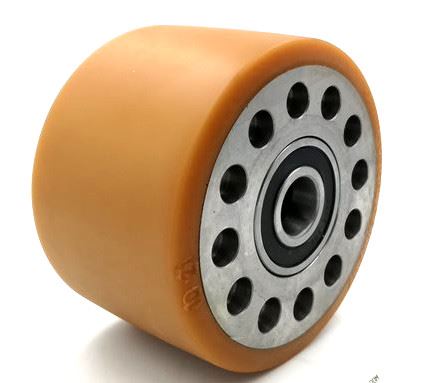

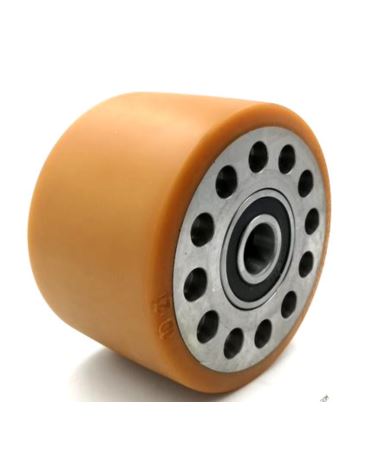

Koło nośne / Load wheel

Jungheinrich 51219781

EKS 208/312  Z S/F ZI L S/F LI 3.09 -
EKS 208/312  US Z S/F ZI L S/F 3.09 -
EOP11-15N2 1.10 -
EKS 210a 10.12 -



Sort of load wheel STANDARD LOAD WHEEL
Type of load wheel WITH BEARING
Diameter of the wheel D (mm) 148
Width of the wheel W (mm) 95
Diameter of the bearing chamber 1 D-BC1 (mm) 60
Depth of the bearing chamber 1 H-BC1 (mm) 17
Diameter of the bearing chamber 2 D-BC2 (mm) 60
Depth of the bearing chamber 2 H-BC2 (mm) 17
Type of bearing 1 (prefix) 6305-RS
Shaft diameter 1 AX1 (mm) 25
Type of bearing 2 (prefix) 6305-RS
Shaft diameter 2 AX2 (mm) 25
Sort of bearing STANDARD BEARING
Material of the bearing STEEL
Hub length HL (mm) 95
Clamping length CL (mm) 95
Material of the wheel (grouped) POLYURETHANE
Material of the rim STEEL
Diameter of the rim D-RIM (mm) 125
Width of the rim W-RIM (mm) 95
Shape of the tread CROWNED
Wheel profile SMOOTH
Rim and tyre true
Gear ring present WITHOUT GEAR RING
Number of bearings 2
Groove for circlip present false
Reduction bushing present false
Bushing between bearings present YES
One side is closed false
Thread guards (FA-ready) WITHOUT THREAD GUARDS
Grease nipple present WITHOUT GREASE NIPPLE
