Szerokość "ucha" 11mmBT OL25
Bezpiecznik 125A Standard DIN43560/1/FAST
Kod produktu:BT337
Dostępność:
w magazynie
Wysyłka w:24h
Cena netto:
11,83 zł
Cena brutto:
14,55 zł
Opis:
Szerokość "ucha" 11mmBT OL25

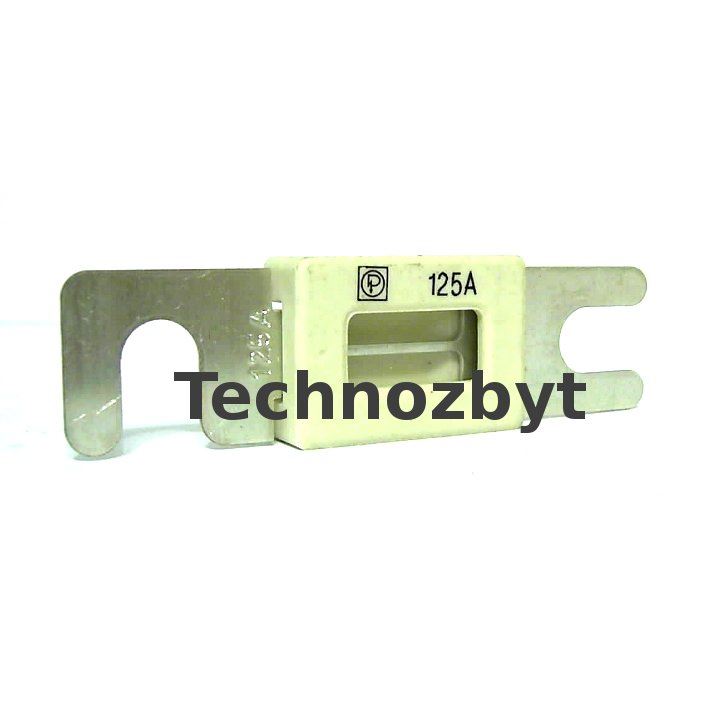

Bezpiecznik 125A / Fuse 125A
Uniwersalne, stosowane w wózkach Jungheinrich, Linde, BT, Toyota
Used in Jungheinrich, Linde, BT, Toyota
|

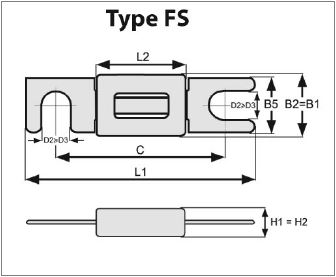

Current I (Amp) |
125 |
|---|---|
|
Height of the housing H2 (mm) |
10 |
|
Width of the connection B5 (mm) |
20 |
|
Diameter fixing hole 1, D2 (mm) |
11 |
|
Diameter fixing hole 2 D3 (mm) |
11 |
|
Total length L1 (mm) |
81.5 |
|
total width B1 (mm) |
22.2 |
|
Total height H1 (mm) |
10 |
|
Center distance between fixing holes C (mm) |
60 |
|
Lenght of the housing L2 (mm) |
32 |
|
Width of the housing B2 (mm) |
22 |
|
Type of fuses |
Fuse strip/stud mounted fuse |
|
Position of the fixing holes |
Under-Side |
|
Melt through speed DSN |
Fast (Am, Gr) |
|
Self-extinguishing |
No |
|
Din standard |
DIN43560/1 |
