Jungheinrich ELE EJE krótszy do koła kompletnego o numerze 50010779

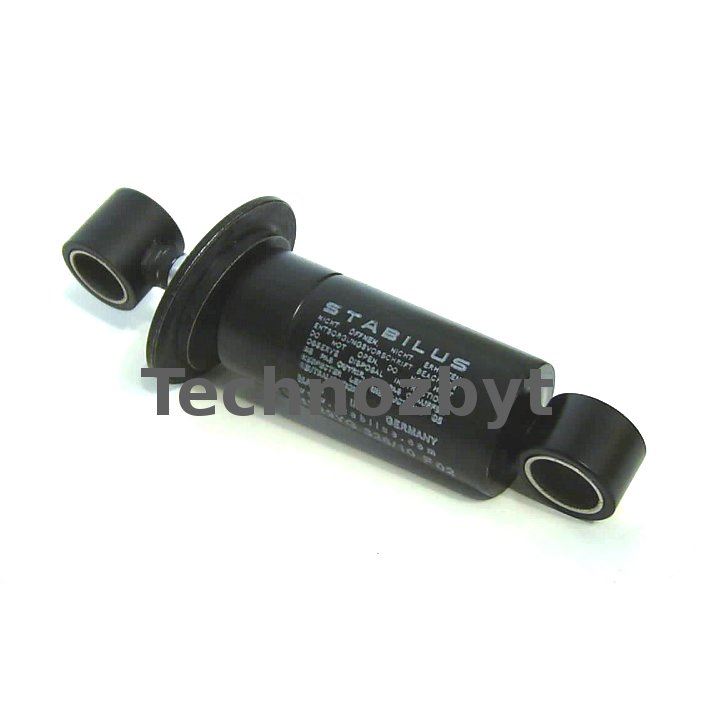

Amortyzator gazowy Jungheinrich 50009820
Kod produktu:5108
Dostępność:
w magazynie
Wysyłka w:24h
Cena netto:
230,58 zł
Cena brutto:
283,61 zł
Opis:
Jungheinrich ELE EJE krótszy do koła kompletnego o numerze 50010779
Amortyzator koła podporowego STABILUS do wózków Jungheinrich / Jungheinrich Supporting wheel absorber shock STABILUS used on:
Jungheinrich 50009820
| Type of application | SHOCK ABSORBER |
|---|---|
| Type of gas spring/shock absorber | PUSH TYPE |
| Piston rod diameter D1 (mm) | 8 |
| Centre distance C1 (mm) | 100 |
| Piston rod length L1 (mm) | 20 |
| Type of connection piston rod side | TYPE H |
| Mounting thickness Ta (mm) | 16 |
| Ball present | NO |
| Bushing present | YES |
| Type of connection piston side | TYPE H |
| Diameter of the mounting eye D3b (mm) | 12 |
| Diameter of the mounting D4b (mm) | 18 |
| Mounting thickness Tb (mm) | 12 |
| Ball present | NO |
| Bushing present | YES |
| ELS 18 | 7.96 - 4.04 |
| ELE 35/45 (MMC) | 9.98 - 8.02 |
| ELE 16-20 | 4.96 - 8.02 |
| EJE-L 14 | 8.93 - 4.94 |
| EJE/-R 20-25 | 1.97 - 8.03 |
| EJE/-R 20-24 | 6.96 - 4.97 |
| EJE KMS 16 | 10.93 - 10.99 |
| EJD 20-3 | 5.94 - 10.94 |
| EJD 20-3 | 10.94 - 3.95 |
| EJD 20-3 | 4.95 - 12.01 |
| ED-Sammel | 1.00 - 12.04 |
