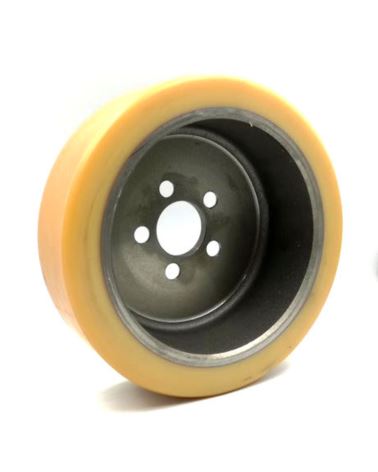

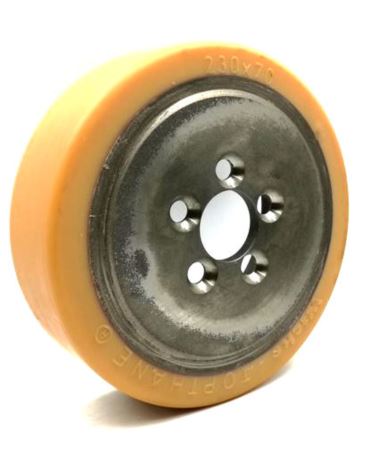

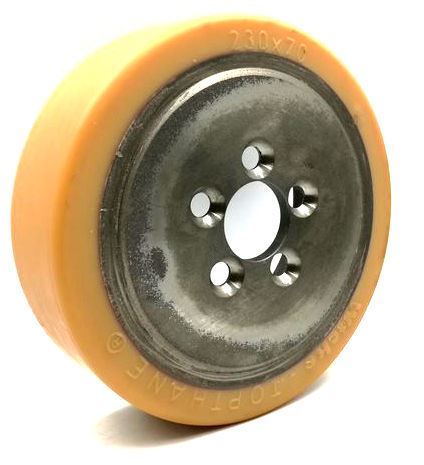

230x70/72-45 Koło napędowe Crown 831047-001

Kod produktu:132916
Dostępność: w magazynie
Wysyłka w:24h
Cena netto: 470,84 zł
Cena brutto: 579,13 zł
Ilość
Opis:

CROWN ES 4000 CROWN ES4040 CROWN ET

Koło napędowe / Drive wheel

Crown 831047-001

Sort of traction wheel STANDARD TRACTION WHEEL
Diameter of the wheel D (mm) 230
Width of the wheel W (mm) 70
Diameter of the rim D-RIM (mm) 188
Width of the rim W-RIM (mm) 70
Shaft diameter AX1 (mm) 45
Hub length HL (mm) 72
Inner offset of the flange OFS-IN (mm) 62
Thickness of the flange TH-FL (mm) 9
Material of the wheel (grouped) POLYURETHANE
Shape of the tread CYLINDRICAL
Wheel profile SMOOTH
Material of the rim CAST IRON
Cam present NIE
Number of bolt holes 5
Type of bolt hole SPHERICAL COUNTERSUNK
Diameter of the bolt holes D-BH1 (mm) 13
Biggest diameter of the bolt holes D-BH2 (mm) 22
Height of the countersunk bolt hole H-BH (mm) 4.5
Pitch circle diameter D-PITCH (mm) 70
Centre distance of the bolt holes C-BH (mm) 41
Rim and tyre NIE
Suitable for coldstore use NIE
One side is closed NIE
